RITZ CONDUCTOR, PIN AND DISC INSULATOR COVERS

คุณสมบัติสินค้า:

SKU : CONDUCTOR-PIN-DISC INSULATOR COVERS

RITZ CONDUCTOR, PIN AND DISC INSULATOR COVERS

Share

Share

RITZ CONDUCTOR, PIN AND DISC INSULATOR COVERS

Conductor Cover

  • It provides a greater protection area in energized parts and therefore the most commonly used in hot line work
  • Available in many models to suit various types of electrical installations with rated voltages up to 48.3 kV.

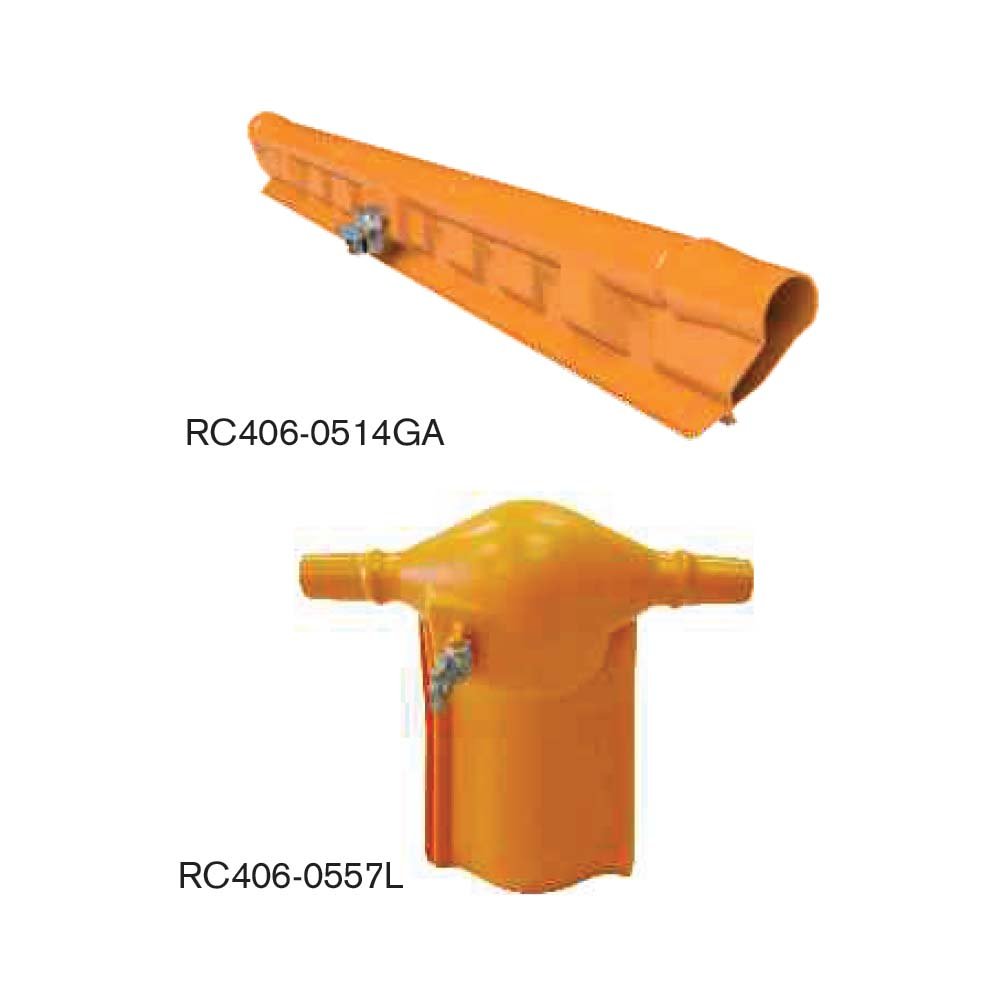

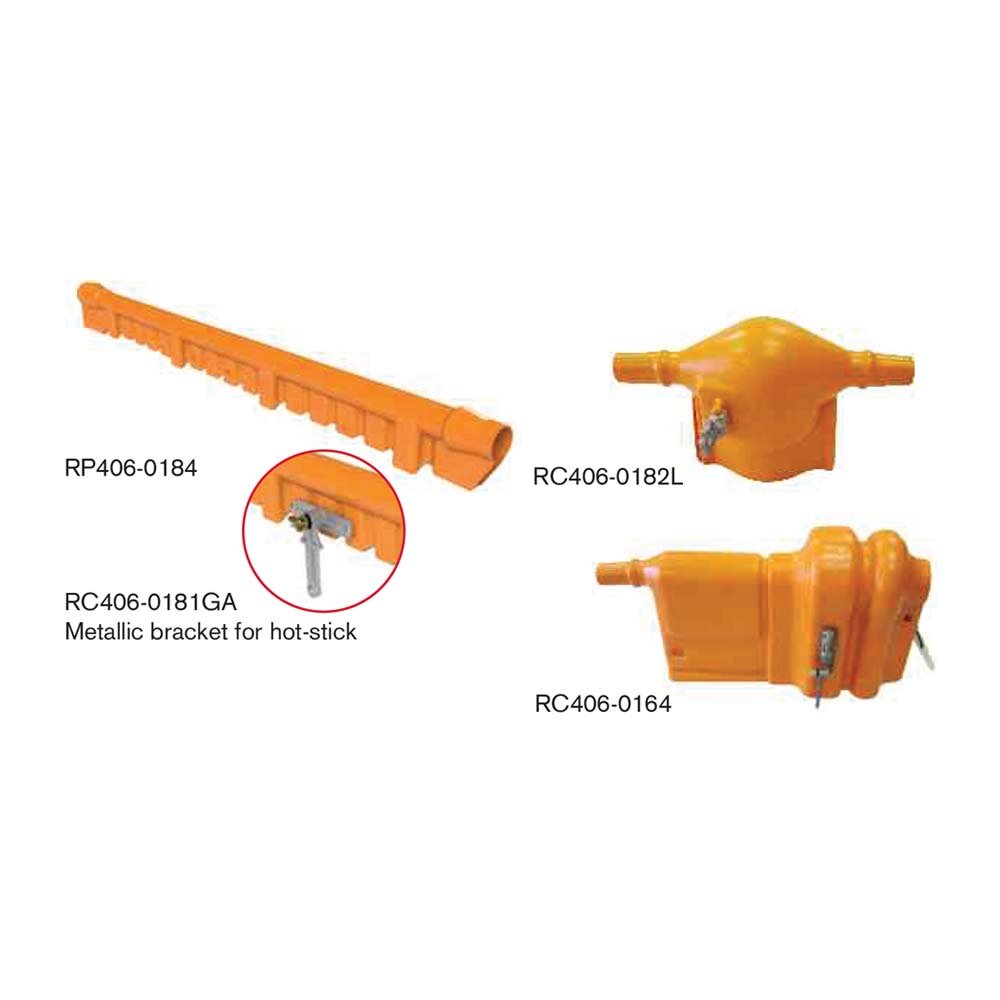

  • Their ends are provided with a male/female fitting, for firm connections with two or more units or other models, such as pin insulator covers and disc insulator covers. Specifically, RP406-0184/RC406-0181GA/RC406-0514GA also allow connections with rubber conductor covers.
  • The metal eye ring clips are designed to mount the covers on the network with a hot-stick.

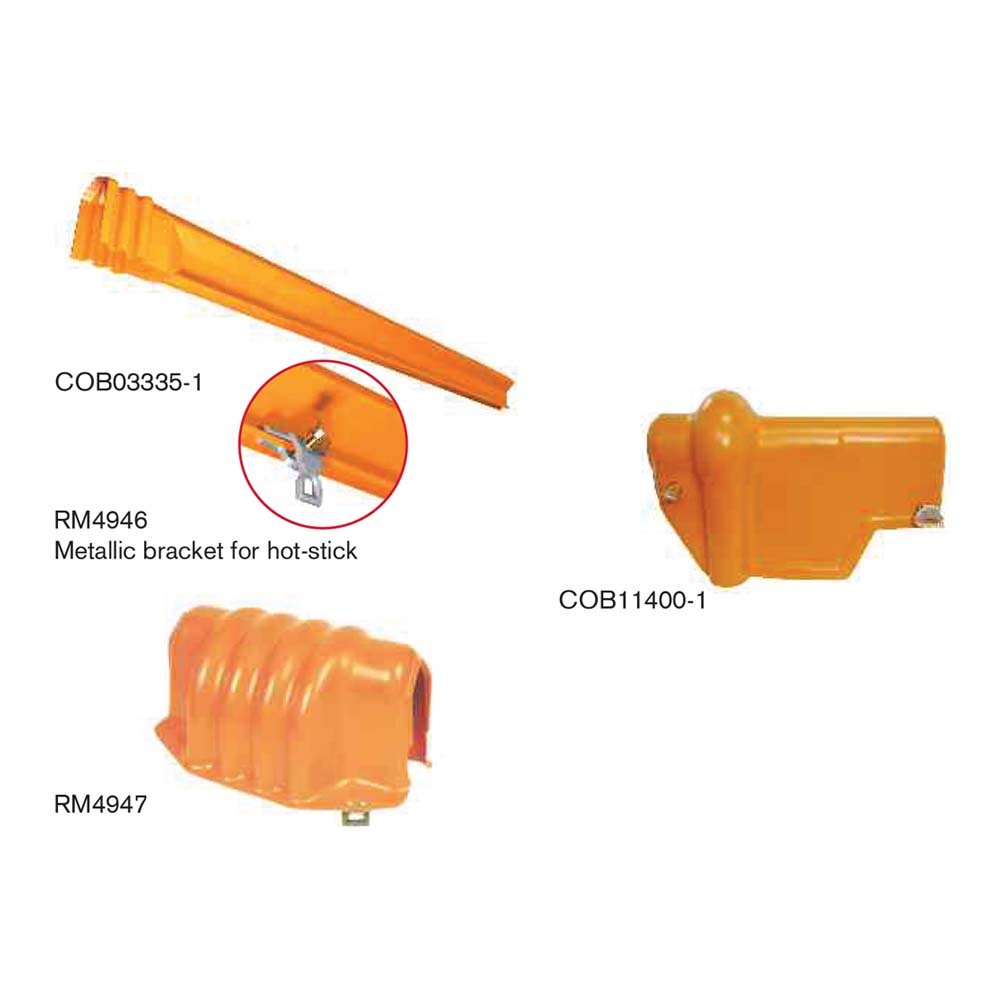

  • Specifically for covers RP406-0184 and COB03335-1, this is an option for users who wish to mount them using the rubber glove method.
  • With a universal head mounted at the end of this stick, the mounting angle
    of the cover can be pre-adjusted.

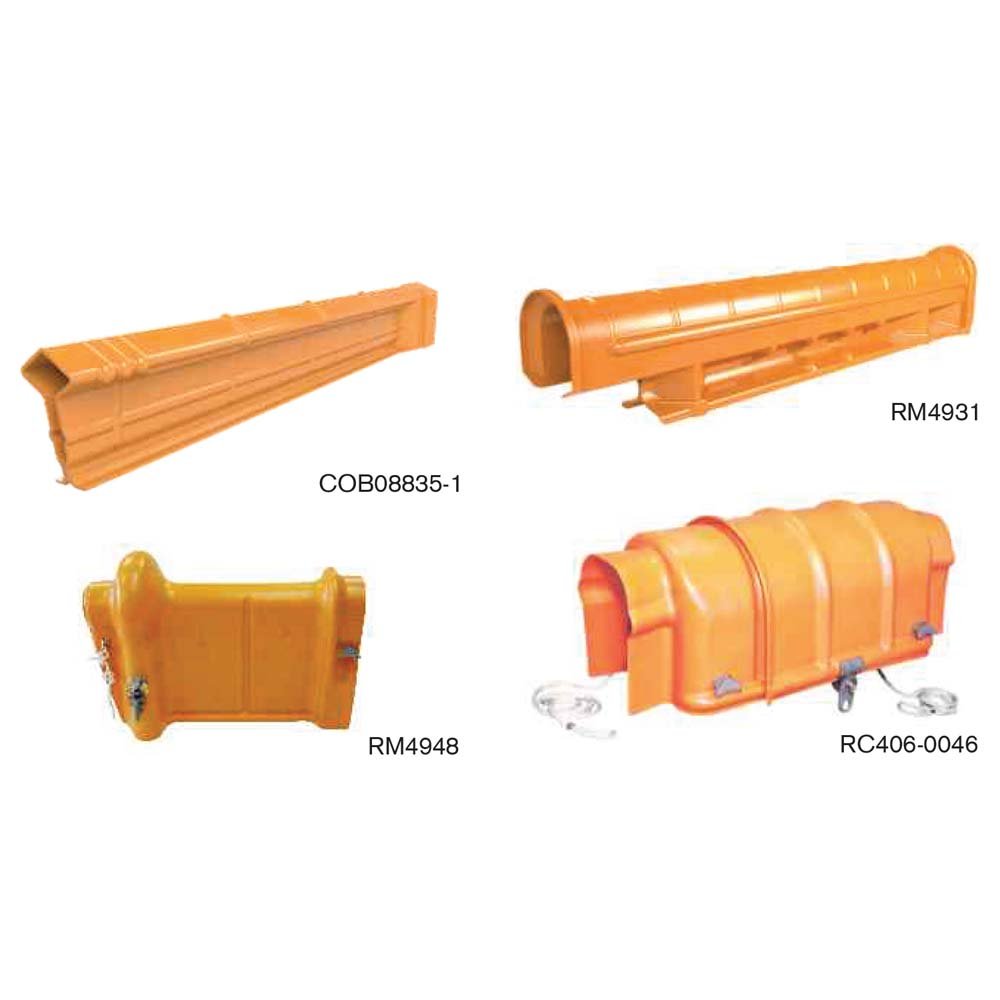

Pin Insulator Cover

  • They are designed to protect an energized conductor next to a pin or post insulator, and are normally used with conductor covers to which they can be coupled through standard fittings.
  • One of its sides can be adjusted for better a fit in many crossarm widths.
  • There are several models available, which vary according to application and operating voltage.
  • Some have metallic brackets for hot-stick work, and others have no metallic brackets for rubber glove work.

Disc Insulator Cover

  • It establishes protection of live parts near disc insulators in anchor chains.
  • They have fittings on both ends, one to couple to the insulator and the other to couple to the conductor cover. Some are equipped with a metallic bracket for the hot-stick work and an elastic strap for better mounting of the edges.


Applicable for both conventional and polymeric insulators.
