RITZ Temporary Grounding Rod for Secondary Networks ATR04514-1/ATR04514-2

RITZ Temporary Grounding Rod for Secondary Networks ATR04514-1/ATR04514-2

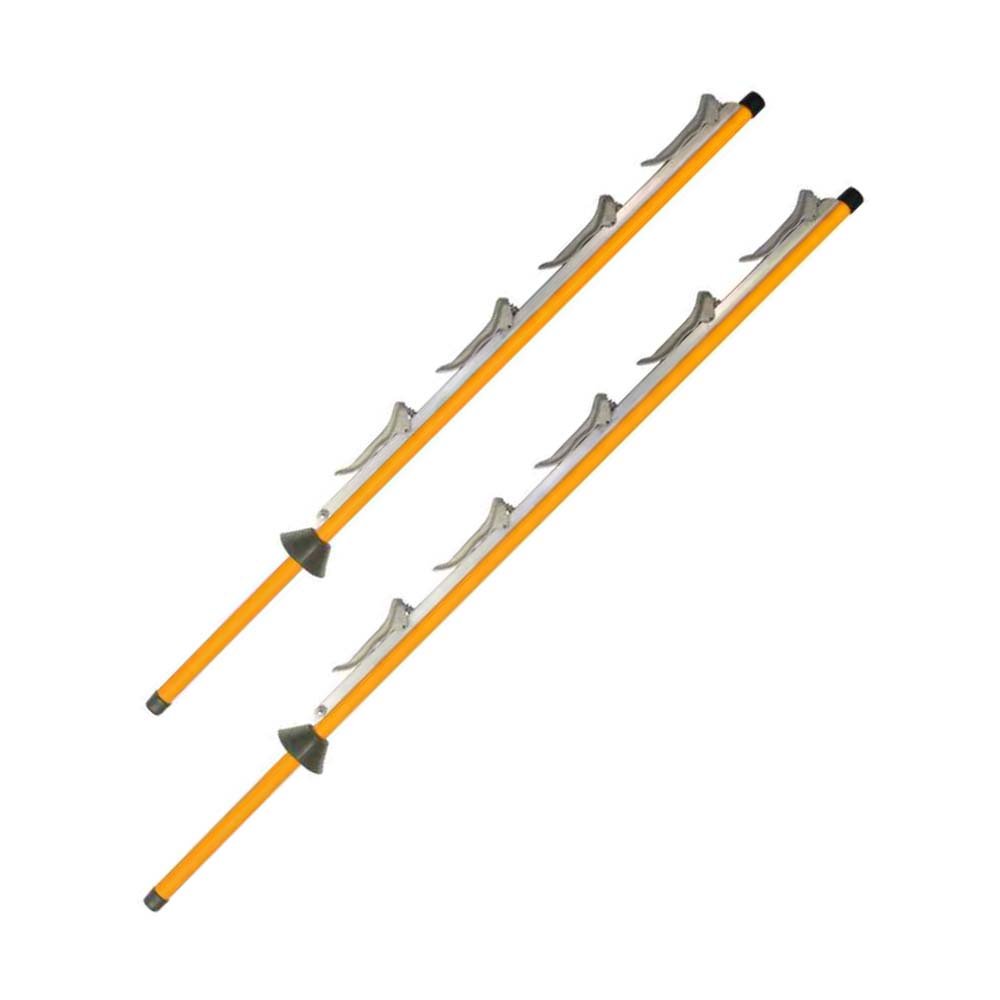

• The temporary grounding rod for secondary networks is used for maintenance services in de-energized low voltage overhead lines.

• The electrician can use it to connect phase conductors to the neutral conductor simultaneously, shorting them with a single move.

• This rod is constructed with a RITZGLAS® Ø 25 mm tube, aluminum jaws, and rubber storm skirt, delimiting the grip area.

• The clamping jaws are connected to the conductor through compression springs, providing faster installation without damaging the conductors.

• The aluminum bar used to interconnect the jaws has a screw at its lower end to connect a ground cable
