RITZ CDS SUPPORT AND LOZENGE SPACER COVERS 26.4 kV

Name: RITZ CDS SUPPORT AND LOZENGE SPACER COVERS 26.4 kV
SKU: CDS SUPPORT-LOZENGE SPACER
Availability: InStock

คุณสมบัติสินค้า:

SKU : CDS SUPPORT-LOZENGE SPACER

RITZ CDS SUPPORT AND LOZENGE SPACER COVERS 26.4 kV

COMPACT SYSTEM COVERS

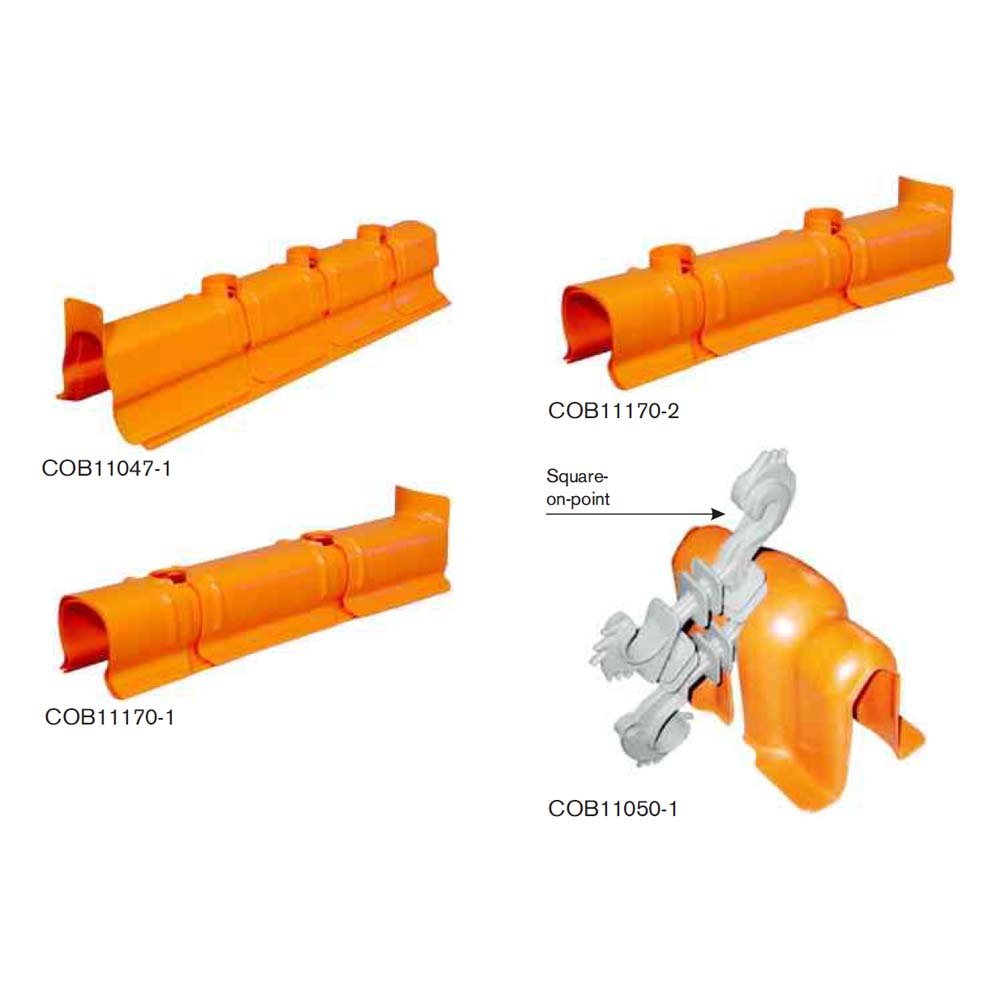

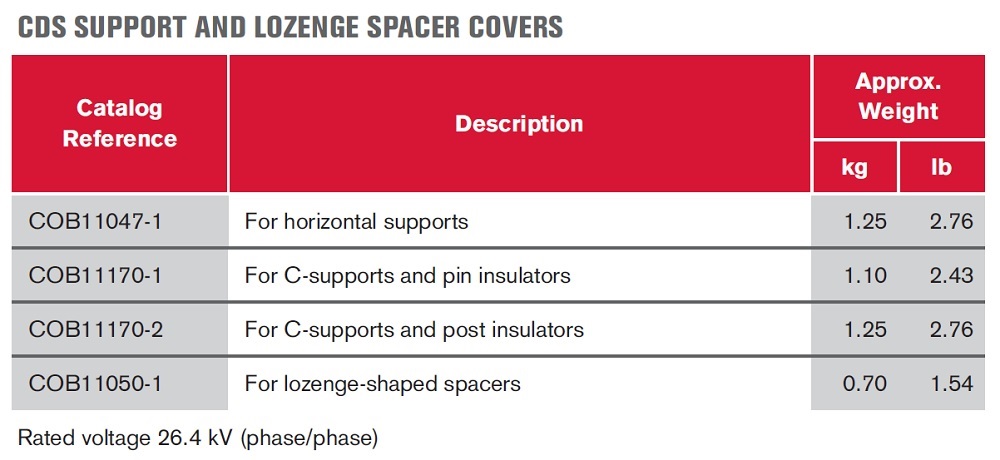

Designed for protection of the CDS (Compact Distribution Systems) supports, when replacing pin insulators. Available in two models: for horizontal supports and C-supports.
The COB11050-1 cover is specifically designed for spacer cable systems to protect conductors near the lozenge-shaped spacer.
Each model consists of two overlapped parts, fully protecting the supports.
It is used with conductor covers in spacer cable systems, to which it is coupled through end fittings.
